首頁 》研華產品》智能系統 》無風扇嵌入式工控機 》ARK-3000系列：高性能無風扇嵌入式工控機 》ARK-3440 A2

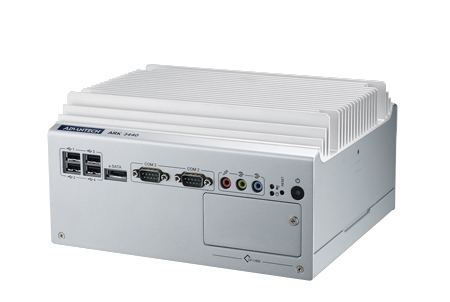

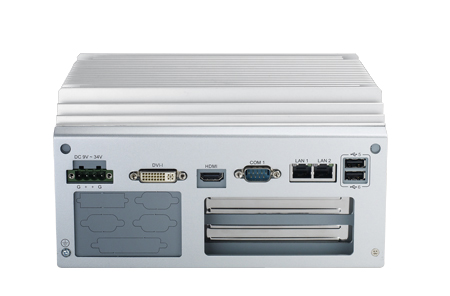

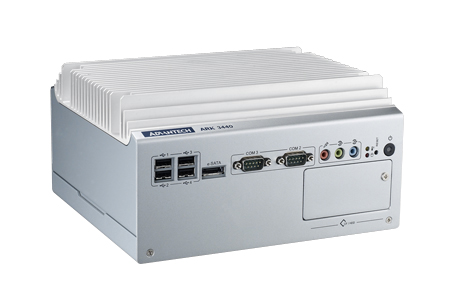

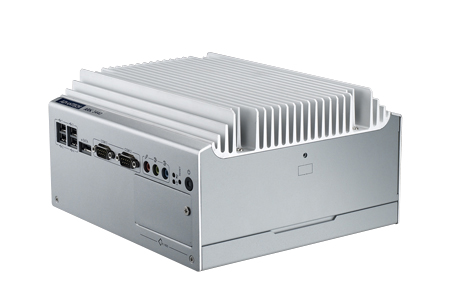

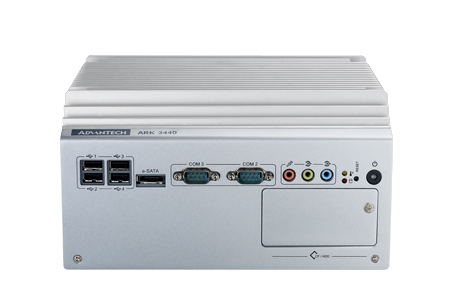

ARK-3440 A2

采用Intel?Core?i3/i5/i7處理器的無風扇嵌入式工控機，支持PCI/PCIe擴展和雙SATA硬盤

Main Features

1.Intel®Core™i3/i5/i7無風扇嵌入式工控機
2.多種顯示接口，支持高分辨率寬屏顯示
3.支持2 GbE，eSATA，6 USB 2.0，音頻和3 COM接口
4.2個內置2.5"SATA硬盤驅動器托架
5.多種擴展接口，適合多種應用
6.易于集成，易于維護，寬壓輸入9~34V
7.符合IP40防護等級
8.支持嵌入式軟件工具
數據表(PDF) 技術資料下載

規格表

		ARK-3440F-U1A2E	ARK-3440F-U4A2E	ARK-3440F-U5A2E
Processor	CPU	Intel Core i3 330E	Intel Core i5 520E	Intel Core i7 610E
	CPU TDP	35W	35W	35W
	Frequency	2.13GHz	2.4GHz	2.53GHz
	Core Number	2	2	2
	L2 Cache	4MB/3MB	4MB/3MB	4MB/3MB
	BIOS	AMI SPI 16Mbit	AMI SPI 16Mbit	AMI SPI 16Mbit
	Chipset	Intel QM57	Intel QM57	Intel QM57
Memory	Technology	DDR3-1066	DDR3-1066	DDR3-1066
	Max. Capacity	8GB	8GB	8GB
	Socket	2x204-pin SODIMM	2x204-pin SODIMM	2x204-pin SODIMM
Display	Controller	Intel QM57 integrated	Intel QM57 integrated	Intel QM57 integrated
	VGA	up to 2048x1536	up to 2048x1536	up to 2048x1536
	LCD (TTL/LVDS/eDP)	LVDS: 24 bit up to 1920x1200(optional)	LVDS: 24 bit up to 1920x1200(optional)	LVDS: 24 bit up to 1920x1200(optional)
	DDI (HDMI/DVI/DisplayPort)	HDMI: HDMI 1.3 up to 2560x 1600p75 DVI-D: up to 1920 x 1200	HDMI: HDMI 1.3 up to 2560x 1600p75 DVI-D: up to 1920 x 1200	HDMI: HDMI 1.3 up to 2560x 1600p75 DVI-D: up to 1920 x 1200
	Multiple Display	Dual	Dual	Dual
Expansion	PCI Express x 4	1(optional)	1(optional)	1(optional)
	PCI Express x 1	1(default)/2/-	1(default)/2/-	1(default)/2/-
	Slot Type	2	2	2
	PCI	1(default)/2/NA	1(default)/2/NA	1(default)/2/NA
Ethernet	Controller	GbE1: Intel 82577LM GbE2: Intel 82583V	GbE1: Intel 82577LM GbE2: Intel 82583V	GbE1: Intel 82577LM GbE2: Intel 82583V
	Speed	10/100/1000Mbps	10/100/1000Mbps	10/100/1000Mbps
	Connector	RJ45x2	RJ45x2	RJ45x2
Audio	Audio Interface	HD Audio	HD Audio	HD Audio
	CODEC	Realtek ALC888	Realtek ALC888	Realtek ALC888
	Connector	1 (Line-in, Line out, Mic-in)	1 (Line-in, Line out, Mic-in)	1 (Line-in, Line out, Mic-in)
Storage	SATA	2 x SATA II (Max. Data Transfer Rate 300 MB/s)	2 x SATA II (Max. Data Transfer Rate 300 MB/s)	2 x SATA II (Max. Data Transfer Rate 300 MB/s)
Storage	CompactFlash	1	1	1
I/O	USB2.0	6	6	6
	LPT	1(optional)	1(optional)	1(optional)
	COM Port	2(2 x RS232, 1 x RS232/ 422/ 485)	2(2 x RS232, 1 x RS232/ 422/ 485)	2(2 x RS232, 1 x RS232/ 422/ 485)
	Reset Button	1	1	1
Power	Power Type	ATX, AT	ATX, AT	ATX, AT
	Power Supply Voltage	Vin: 9VDC~34VDC	Vin: 9VDC~34VDC	Vin: 9VDC~34VDC
	Connector	4pin terminal block	4pin terminal block	4pin terminal block
	Power Consumption (Idle)	38W	38W	38W
	Power Consumption (Full Load)	52.6W	52.6W	52.6W
	Power Adaptor	Optional	Optional	Optional
Environment	Operational Temperature	With extend temperature peripherals: -10 ~ 55°C, with 0.7m/s air flow With HDD: 0 ~ 45° C, with 0.7m/s air flow	With extend temperature peripherals: -10 ~ 55°C, with 0.7m/s air flow With HDD: 0 ~ 45° C, with 0.7m/s air flow	With extend temperature peripherals: -10 ~ 55°C, with 0.7m/s air flow With HDD: 0 ~ 45° C, with 0.7m/s air flow
	Non-Operational Temperature	-40~ 85° C and 40° C @ 95% RH Non-Condensing	-40~ 85° C and 40° C @ 95% RH Non-Condensing	-40~ 85° C and 40° C @ 95% RH Non-Condensing
	Vibration Resistance	With SSD: 5 Grms With HDD: 1 Grms	With SSD: 5 Grms With HDD: 1 Grms	With SSD: 5 Grms With HDD: 1 Grms
	Shock Protection	With SSD: 50 G With HDD: 20 G	With SSD: 50 G With HDD: 20 G	With SSD: 50 G With HDD: 20 G
Physical	Dimension (mm)	200x220x117mm	200x220x117mm	200x220x117mm
	Weight	4kg(8.8lb)	4kg(8.8lb)	4kg(8.8lb)
	Construction	Aluminum/Iron	Aluminum/Iron	Aluminum/Iron
	Mounting	Desk/ Wallmounting	Desk/ Wallmounting	Desk/ Wallmounting
Operating System	Microsoft Windows	Yes	Yes	Yes
	Linux	Yes	Yes	Yes
	SUSIAccess	Yes	Yes	Yes
Certification	EMC	CE, FCC, CCC, BSMI, KC	CE, FCC, CCC, BSMI, KC	CE, FCC, CCC, BSMI, KC
Certification	Safety Certifications	UL, CCC, BSMI, KC	UL, CCC, BSMI, KC	UL, CCC, BSMI, KC
